Hetzner and Cloudflare as Code — Terraform
STACK USED
- Terraform
- Hetzner Cloud
- Cloudflare
- Cloudflare R2
- Docker Swarm
Project Overview

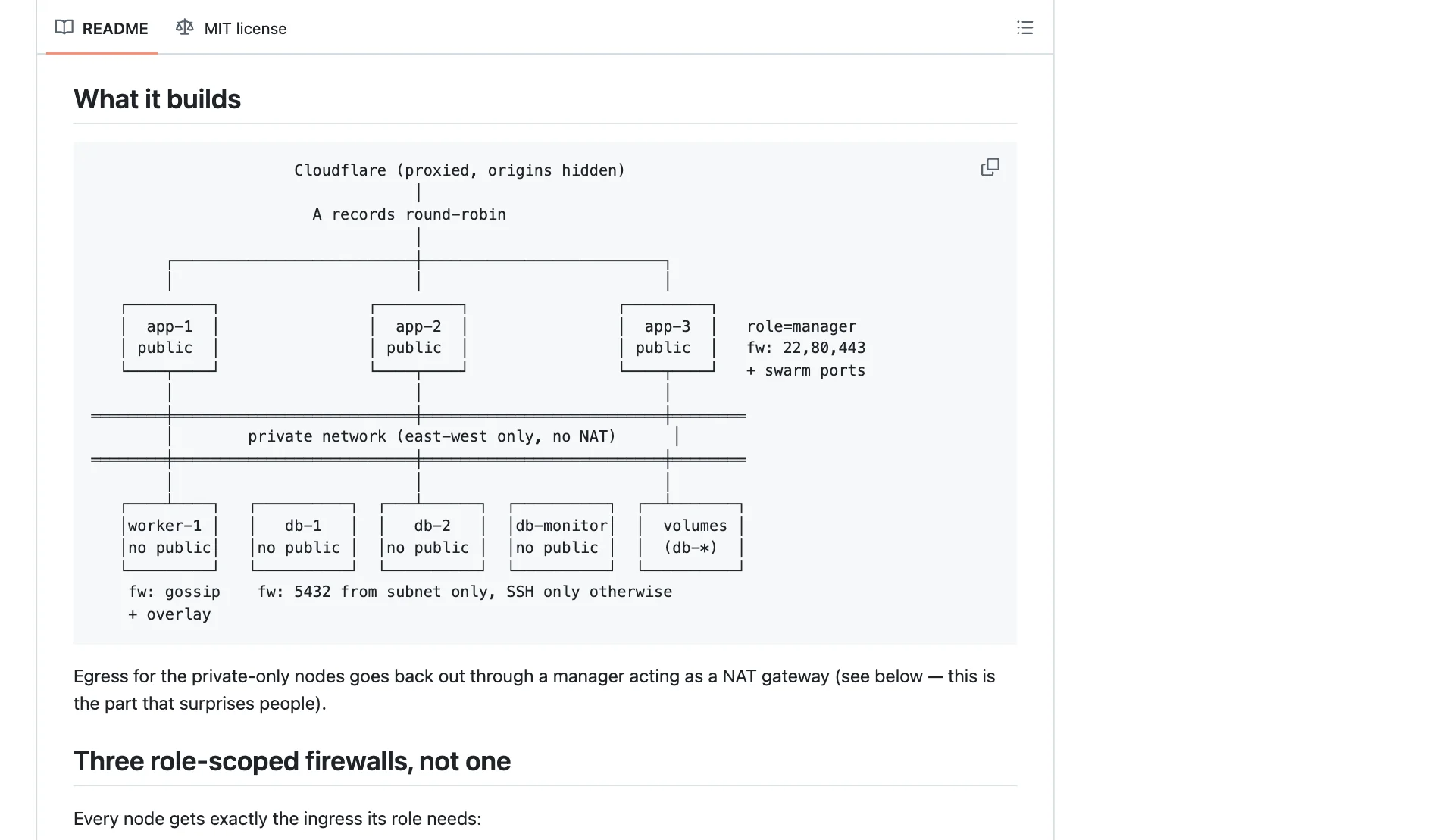

Terraform for a role-segmented Docker Swarm cluster on Hetzner Cloud. Public manager nodes sit behind Cloudflare; workers and database nodes have no public address at all. Three firewalls give each role only the ports it needs, and Cloudflare — the zone, DNS, R2 storage and Turnstile — is managed as code too.
It was extracted from a production deployment. Terraform provisions the infrastructure and stops there: joining the cluster and deploying stacks are left to configuration management, which handles re-runs far better.
Key Features

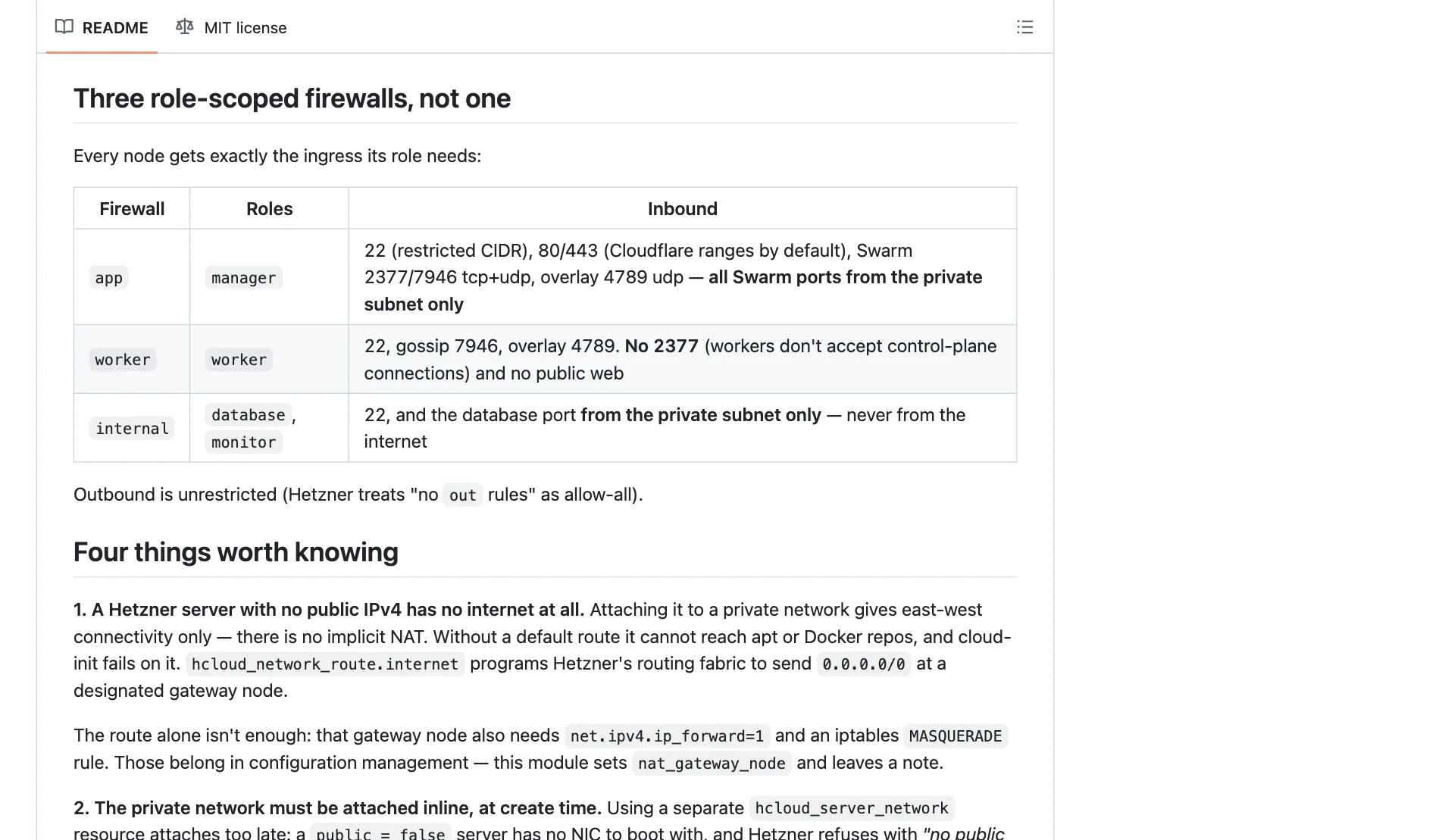

Firewalls by role
Web traffic reaches the managers only from Cloudflare's address ranges, and cluster ports only from the private network.
The database port is reachable from the private network only, never from the internet.
State without a lock table
Terraform state lives in an S3-compatible bucket with native locking, so there is no DynamoDB table to provision or pay for.
Guard rails
Storage buckets are protected against terraform destroy.
The provider lock file covers macOS and Linux, so a laptop and a CI runner install identical providers.
Project Gallery
Challenges Solved
Private servers have no internet
A Hetzner server without a public address can't reach package repositories, so its setup fails. A network route sends outbound traffic through a manager node acting as a NAT gateway.
Servers that can't boot
A server with no public address needs its private network attached at creation, or Hetzner refuses to start it. The network is attached inline rather than as a separate step.
Values unknown until apply
Terraform won't plan resources keyed on values it can't know yet. DNS records are keyed on static names, with the servers' IP addresses only in the values.
