Kubernetes Delivery Platform — k3s and Argo CD
YEAR
2026
MY ROLE
Platform engineering: infrastructure, CI/CD, GitOps and operations
INDUSTRY
DevOps training project
STACK USED
- Proxmox
- Terraform
- Ansible
- k3s
- Helm
- Argo CD
- GitLab CI
- Traefik
- cert-manager
- Prometheus
- Grafana
- Loki
Project Overview
A small FastAPI service and the full platform around it. Terraform creates the Proxmox virtual machines, Ansible builds them into k3s clusters for staging and production, and a Helm chart packages the application with its database, ingress and backups.

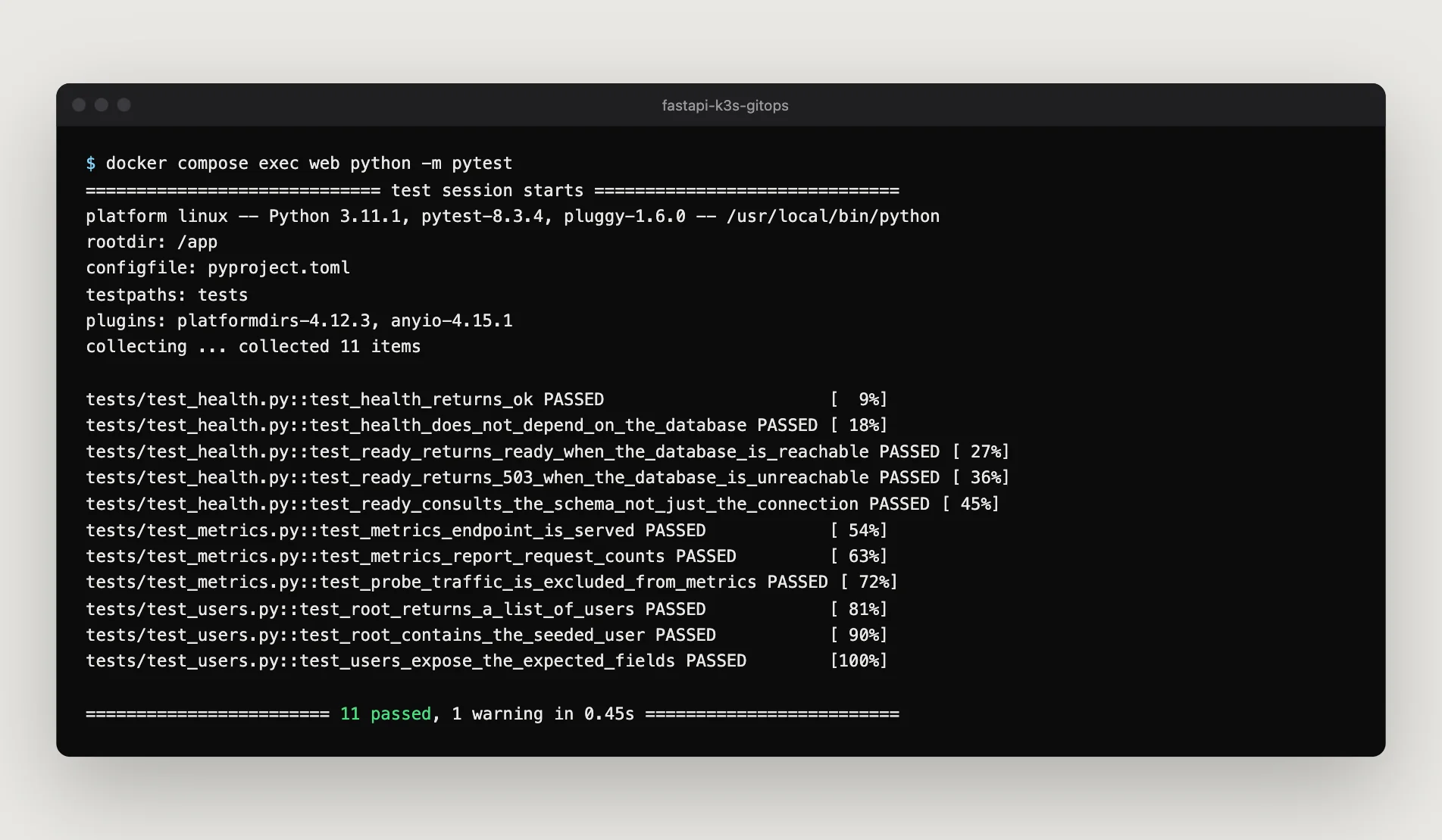

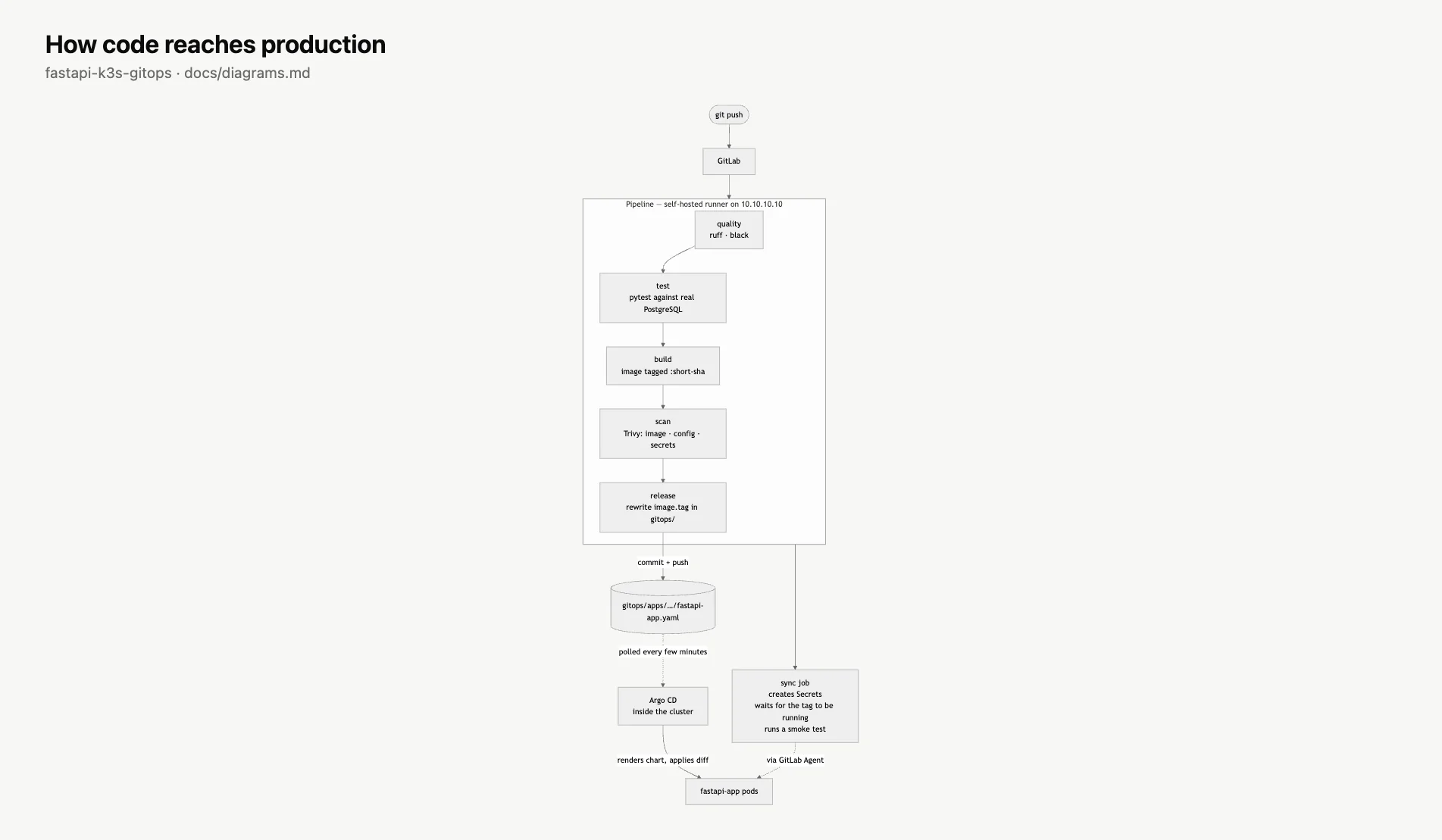

GitLab CI tests, builds and scans each image, then records the new release in Git. Argo CD pulls that change and reconciles both clusters. The application is deliberately small, so the platform decisions stay easy to see.
Key Features
Releases pulled from Git
CI writes the new image tag to Git; Argo CD reconciles staging and production from that state.
Production is a manual step from the production branch.
Scanned before it ships
The pipeline scans configuration, secrets, dependencies and the image before any deploy.
A scheduled job rescans the image running in production.
A hardened runtime
The container runs as a non-root user with a read-only root filesystem and dropped capabilities.
Production has a PodDisruptionBudget, so maintenance can't take every replica down at once.
Project Gallery
Challenges Solved
Secrets in a GitOps setup

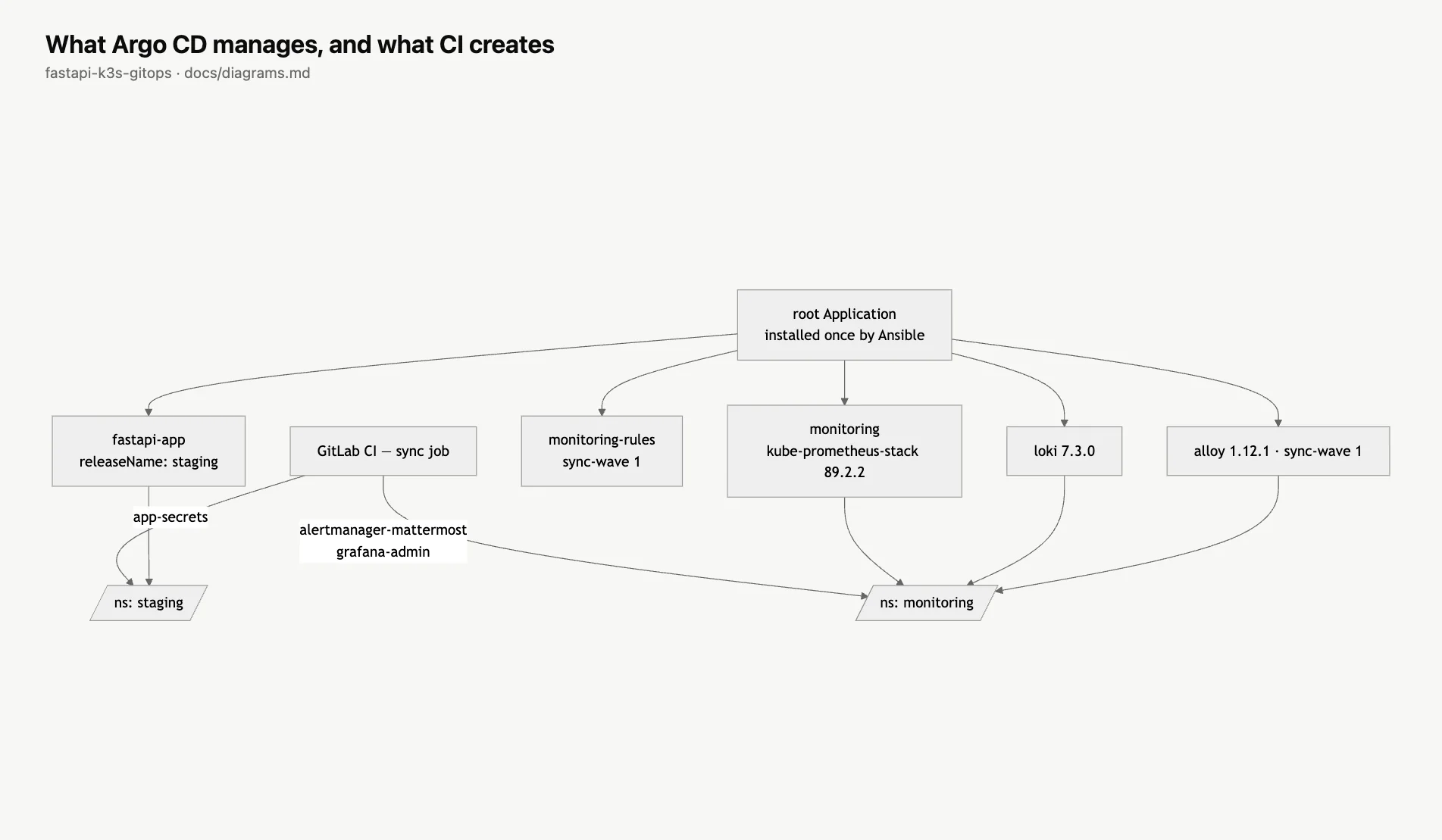

Argo CD reconciles everything from Git, but credentials never go there. CI creates the Kubernetes secrets from protected variables, and the manifests only reference them.
Backups an attacker can't erase
Nightly database dumps are verified, and production copies them off-site with restic to object storage, using credentials that cannot delete remote objects.
Rebuilding from nothing
A bootstrap script rebuilds an environment from bare virtual machines, and the repository documents the disaster-recovery and staging-rebuild procedures step by step.
